S-485 Laser Screed

With incredible pulling power and the OASIS control system, the S-485 Laser Screed® is a ride-on four-wheel drive model that can screed in any direction and is easy-to-operate. With the versatility to be utilized as a Laser Screed® machine or a Laser Controlled Rake, the S-485 provides simple, fast, and accurate results whether you are screeding concrete or prepping the subgrade.

Screed more concrete with the 10’ hydraulic head – increasing productivity by 20%. Also, the Hydraulic Vibrator is more responsive to all slump types and consistently delivers a quality floor.

Availability:

United States
United Kingdom
India

Product Brochures

Features & Benefits

Improved floor quality
Increased profitability
Somero Quick Gradeset System®
Lightweight and versatile
Screeds on elevated slabs or on grade
Provides better performance in difficult applications, including chaired rebar or mesh, ice rinks, in-floor heat and freezer slabs
4 Wheel Drive
Column Block Protection

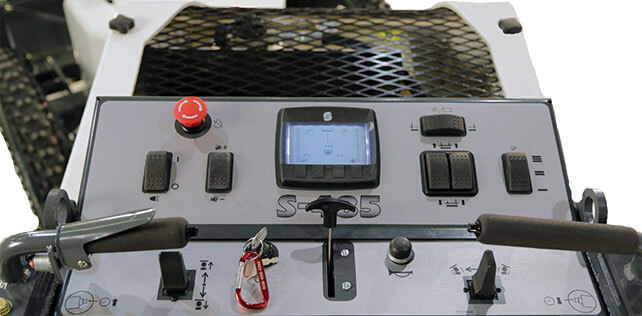

OASIS Laser Control System
Auto valve calibration for consistent, unsurpassed performance
Compatible with the 3-D Profiler System®
Screed more concrete with the 10’ (3m) hydraulic head... increase productivity by 20%
Hydraulic Vibrator is more responsive to all slump types... consistently delivers a quality floor

Base Specifications

Weight	1,107 lbs \| 502 kg
Width	8′ 4” \| 2.5 m
Length	9’ \| 2.7 m
Height	4′ 2″ \| 1.3 m
Engine	20.8 HP \| 15.5 kW HONDA GX630, Gasoline
Tires	Moto (standard) \| High-Float (optional)
	10’ \| 3 m 8’ \| 2.4 m 6′ \| 1.8 m Rake/Sub-Grade Head

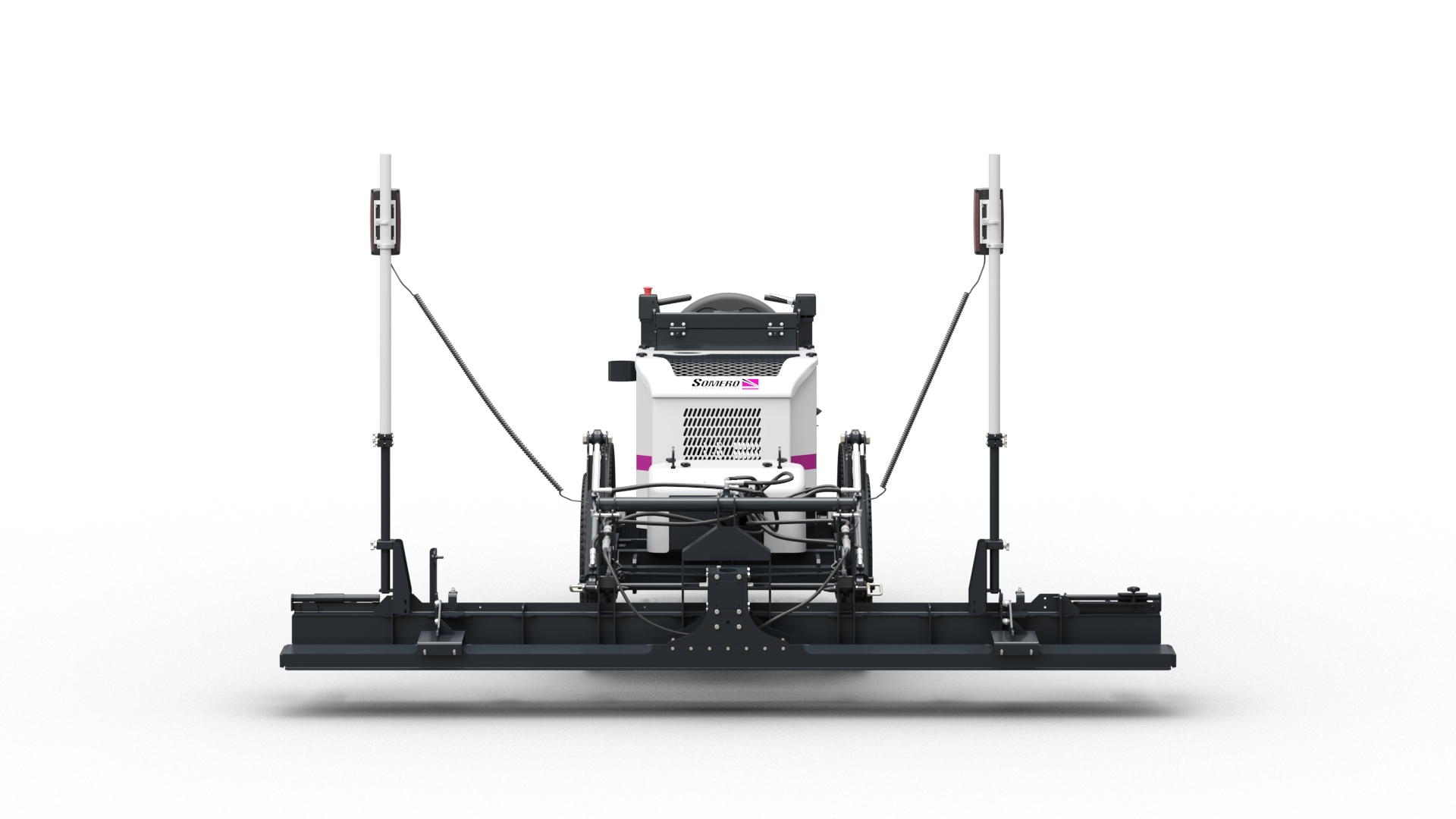

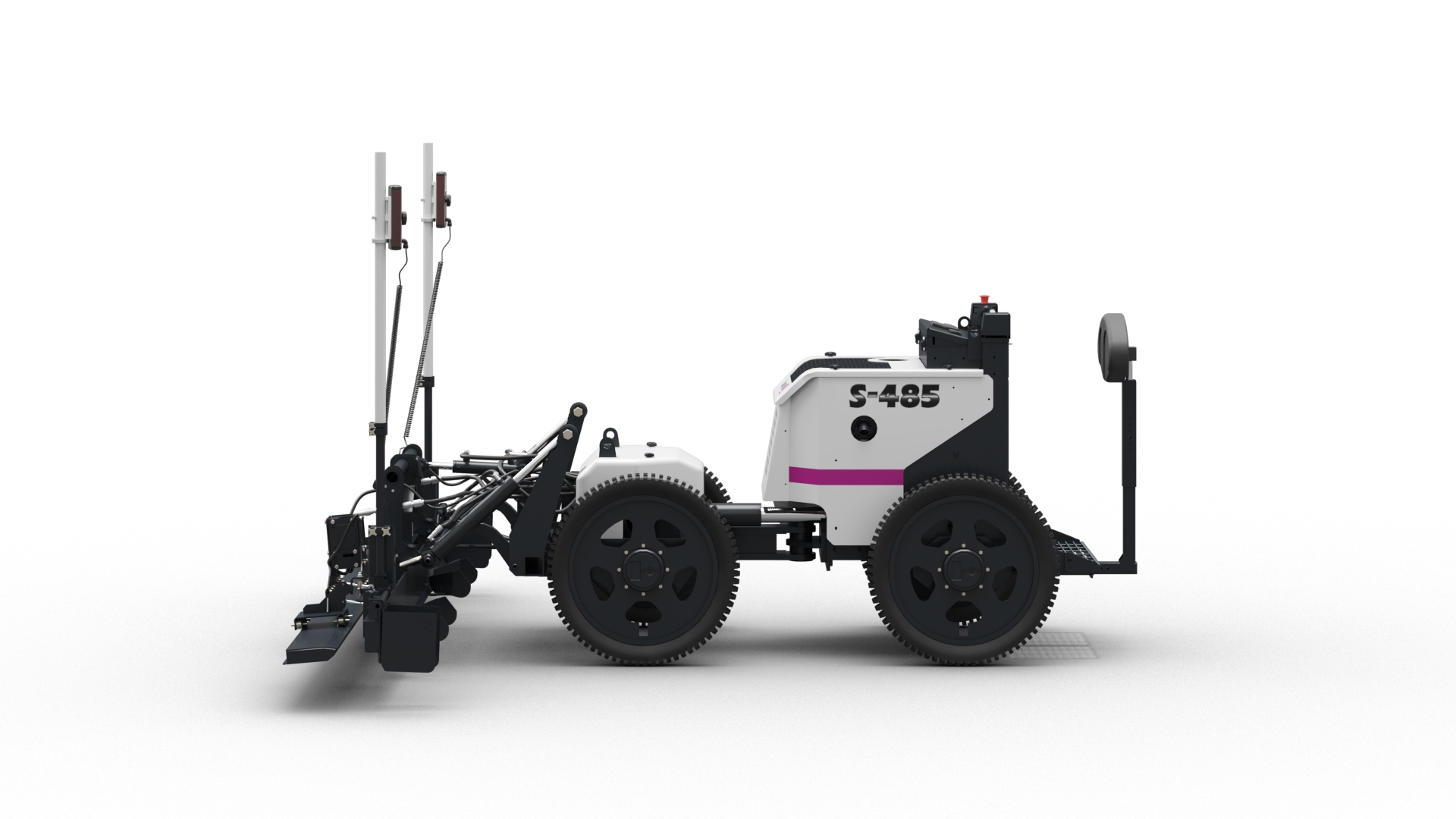

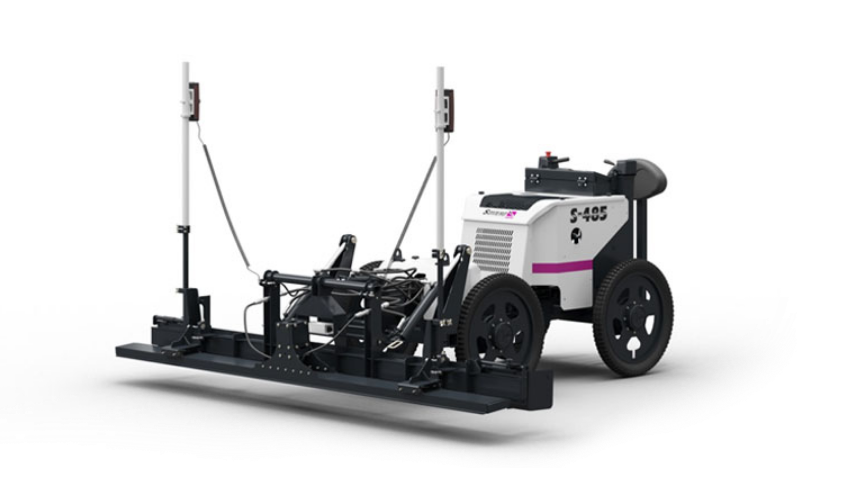

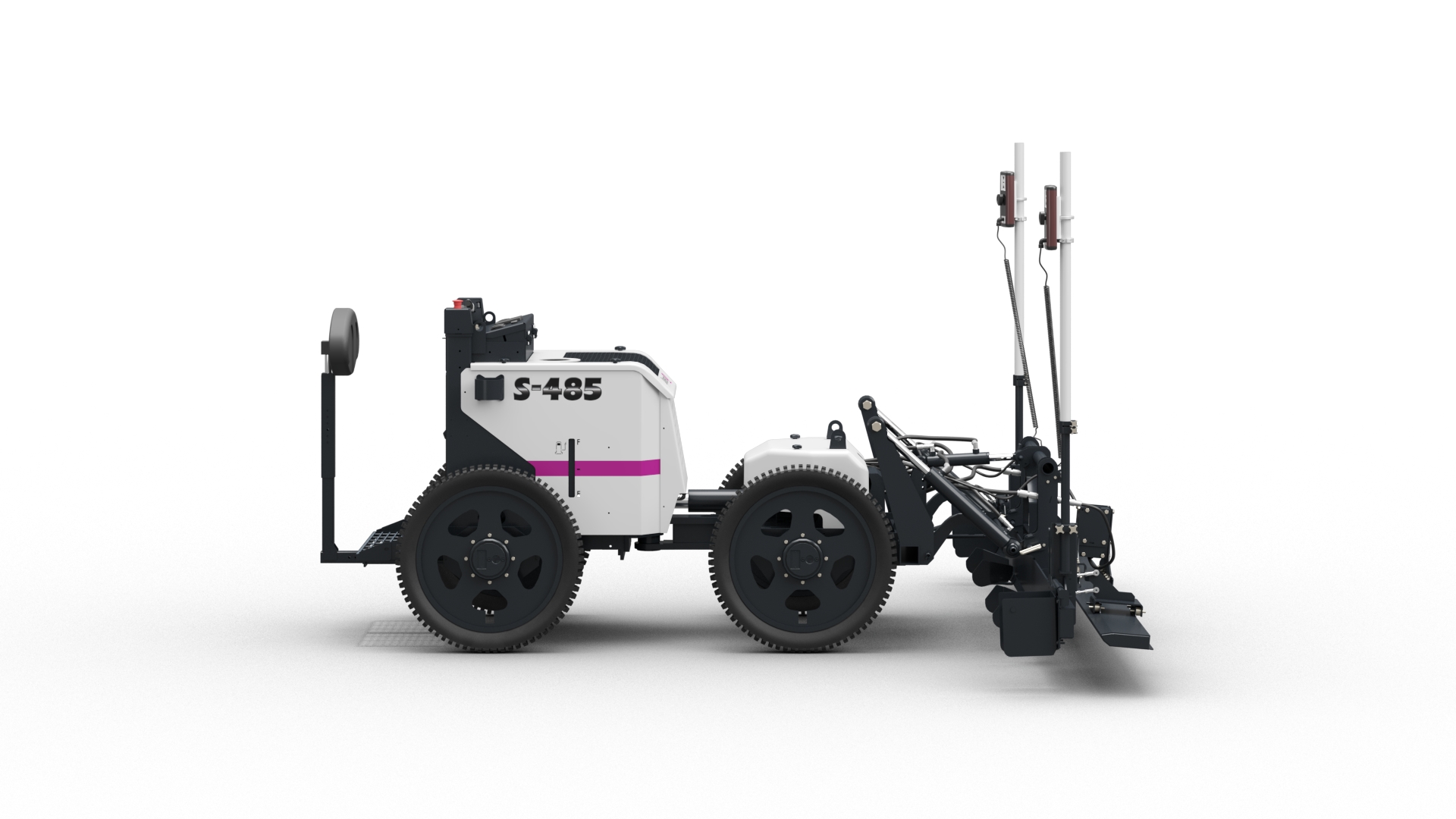

Somero S-485 Laser Screed Machine

With incredible pulling power and the OASIS control system, the Somero® S-485 Laser Screed® is a ride-on four-wheel drive model that can screed in any direction and is easy-to-operate.

Related Products

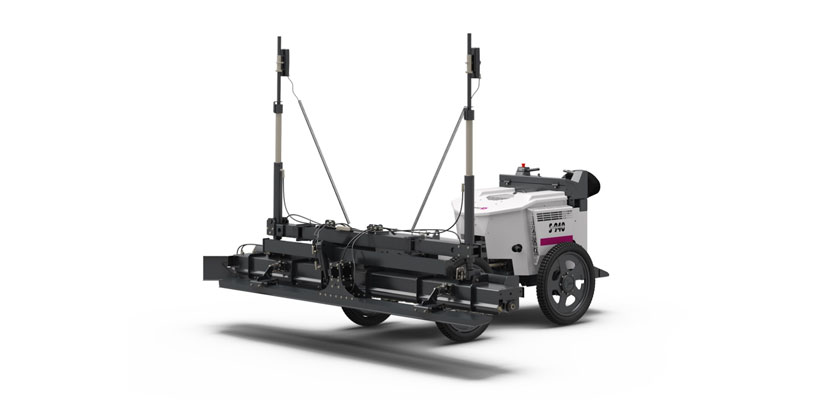

S-940 Laser Screed

Available with a fully automated self-leveling screed head, raking/fine grade head, this powerful machine has fewer switches and an easy-access hinged console, making any job comfortable for your operator.

View Product

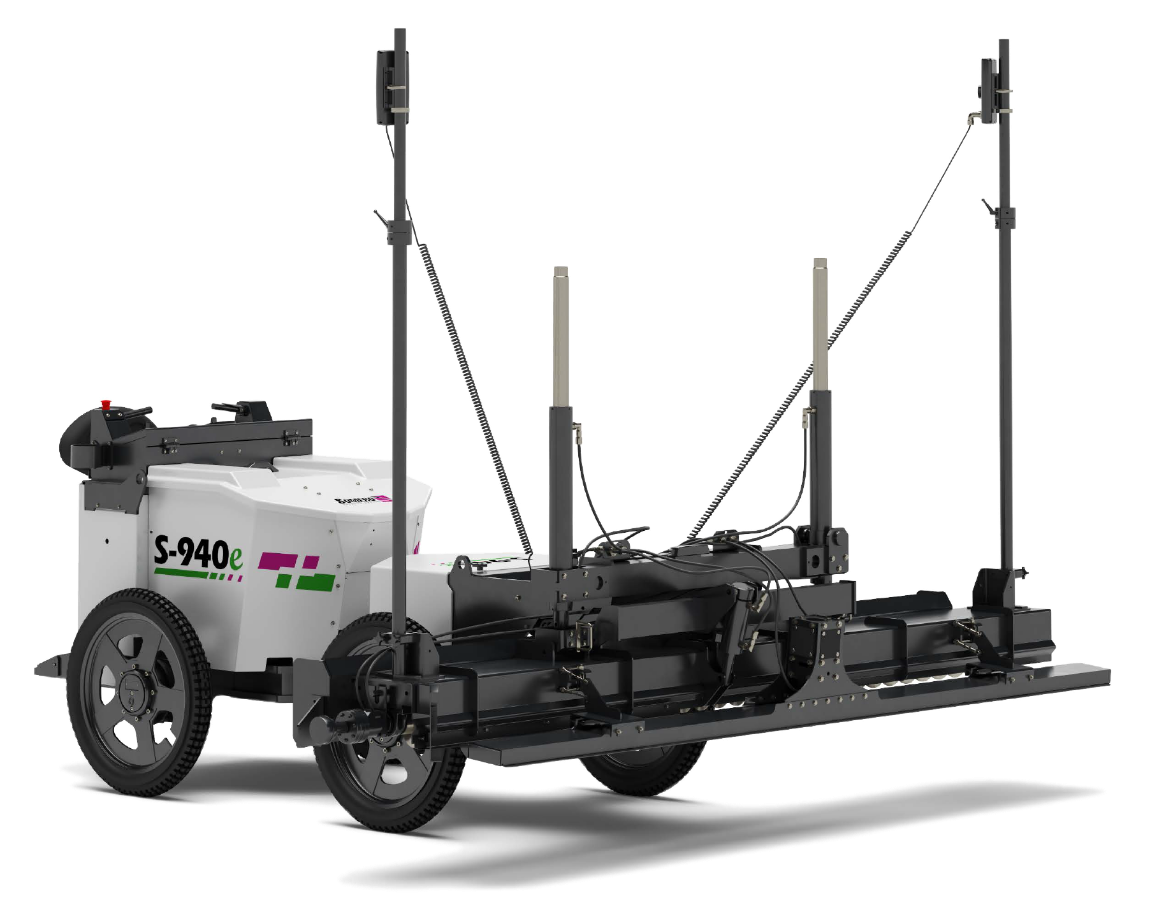

S-940E Electric Laser Screed
